There is a distinct, agonizing sound every DIYer and technician knows all too well: the chaotic clattering of metallic tools scraping against a metal drawer while frantically searching for a single 10mm combination wrench.
I experienced my ultimate wake-up call on a high-stakes garage restoration back in 2016. Midway through reassembling a custom motorcycle engine, I wasted nearly twenty minutes hunting through a chaotic, messy toolbox drawer just to locate two specific wrenches. That lost time did not just derail my momentum; it caused a micro-scratch on a freshly powder-coated side cover.
That was the day I permanently banned loose tool storage in my shop and instituted a standardized layout system anchored by a proper wrench organizer rack.
Whether you are managing a small home garage or overseeing a busy commercial workshop, systematically arranging your hand tools is not about aesthetic perfection—it is about operational efficiency, asset preservation, and eliminating micro-frustrations.
The Economics of Lost Time: Why Tool Organization Matters
To understand why a dedicated tool layout system is necessary, consider your toolbox drawer as high-value real estate.
When wrenches lie piled on top of one another, you encounter two distinct costs: friction loss and asset degradation. Friction loss refers to the accumulated minutes wasted digging, identifying sizes, and un-nesting chrome-vanadium steel. Asset degradation occurs when precision box ends and open jaws constantly bang into each other, dulling stamped markings and chipping protective chrome plating.
CHAOTIC DRAWER STORAGE
[1/2"] -> [10mm] -> [5/8"] -> [7/16"] (Jumbled Pile = High Friction & Wear)
SYSTEMATIC RACK LAYOUT
| 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 9/16" | 5/8" | 11/16" | 3/4" |
^ ^
|=================== Ascending Size Graduation ===============|

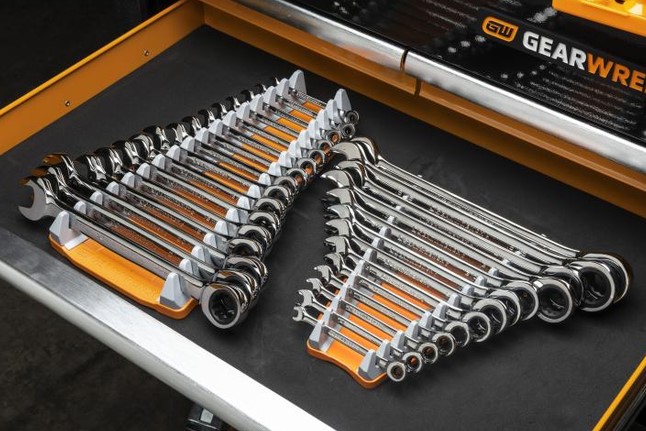

A structured wrench organizer rack transforms loose, disorganized tools into an instant visual index. You can identify missing tools at a single glance before closing up a project, effectively preventing forgotten tools from lingering inside engine bays or workplace sites.
Materials & Engineering: Choosing the Right Organizer Architecture
Not all tool storage accessories are built the same. Over my decade in home improvement and shop management, I have tested every storage material available. Choosing the right design depends entirely on whether your storage is stationary or mobile.
| Organizer Type / Material | Primary Mechanism | Mobile Friendly? | Best Work Environment |
| Heavy-Duty ABS Plastic Racks | Graduated slotted teeth with magnetic/gripper bases | High (if locking teeth are present) | Tool chest drawers, mobile service carts |
| Anodized Aluminum Rails | Spring-loaded clips or modular sliding pegs | Very High | Jobsite tool bags, wall-mounted pegboards |
| Magnetic Polymer Trays | High-grade neodymium magnetic backings | Moderate | Exterior side walls of steel tool chests |
| Traditional Canvas/Nylon Tool Rolls | Individual stitched pockets with tie straps | Superior | Portable trunk kits, off-road recovery packs |
For standard rolling tool cabinets, high-density ABS plastic or polymer-based modular racks offer the best balance of chemical resistance against oil, fuel, and shop solvents.
Principles of Visual Logistics: How to Lay Out Your Rack
Setting up a wrench organizer rack is like organizing books in a library; it requires a logical system that feels intuitive under pressure.
1. Grouping by Measurement System
Never mix Metric (mm) and SAE (fractional inch) wrenches on the same rail or rack. Group them into distinct zones using color-coded racks—traditionally red for SAE and black or blue for Metric. This eliminates cross-measurement confusion during high-speed repairs.
2. Utilizing Ascending Alignment
Arrange your wrenches in strict ascending order from smallest to largest, facing the stamped size markings upward toward the drawer opening.
-
Forward-facing orientation: Place open ends pointing upward or inward toward the rack spine.
-
Tapered profile optimization: Place larger, heavier wrenches closer to the drawer’s slide bearings to distribute weight evenly across cabinet drawer slides.
+-------------------------------------------------------+
| [8mm] [10mm] [12mm] [13mm] [14mm] [15mm] [17mm] [19mm]|
| | | | | | | | | |
| (S) (M) (M) (M) (L) (L) (XL) (XL) |
+-------------------------------------------------------+
| <--- Low Weight Side Heavy Weight Side ---> |
+-------------------------------------------------------+
3. Implementing the “One-Touch” Rule
Your rack should allow you to retrieve and return any single wrench using one hand, without moving adjacent tools. If you have to lift three other wrenches to pull out the one you need, your rack spacing or angle is incorrect.
Step-by-Step Workshop Implementation Protocol
Ready to clean up your workspace? Follow this field-tested setup protocol to optimize your storage footprint.
Step 1: Deep Cleaning and Sorting
Remove every wrench from your current storage. Wipe down each tool with a solvent-based degreaser to strip off grease, grit, and oil residues. Group your tools into complete sets and isolate duplicates or odd sizes.
Step 2: Measuring Drawer Clearance
Before buying or mounting a wrench organizer rack, measure the clear interior height of your tool drawer.
-
Place your largest wrench (typically a 1-inch or 24mm size) vertically in your proposed rack.
-
Measure the total height from the bottom of the rack to the top edge of the largest wrench.
-
Verify that this height provides at least 1/2-inch of vertical clearance below the drawer frame so it slides smoothly without jamming.
Step 3: Securing the Storage Base
Prevent the rack from sliding backward every time you open or slam the tool drawer. Use a non-slip foam drawer liner combined with magnetic-backed organizer rails, or apply thin strips of heavy-duty hook-and-loop tape along the bottom edge of plastic racks.
Expert Advice: Pro Tips & Hidden Warnings
Hidden Warning: Avoid buying low-grade, non-magnetic plastic organizers for drawers without non-slip liners. When you open or close a drawer quickly, unanchored racks will slide backward, causing heavy wrenches to tip over, jam the drawer mechanism from the inside, and potentially lock your toolbox shut.
Keep these additional trade rules in mind when optimizing your workspace:
-
Account for Taper and Thickness: High-torque combination wrenches or ratcheting wrenches feature thicker beams than standard stamped wrenches. Ensure your chosen wrench organizer rack features wide enough slots to accommodate ratcheting heads without jamming.
-
Audit for Missing Tools Immediately: At the end of every work session, perform a 5-second visual audit. An empty slot on a dark rack instantly signals that a tool was left behind on a job site or inside a vehicle bay.
-
Protect Against Humidity: Toss a few silica gel packs or an vapor-phase corrosion inhibitor (VCI) emitter pad into the drawer alongside your organized rack to prevent ambient moisture from rusting your high-carbon steel tools.
Master Your Workspace Efficiency
A professional workspace is defined by how effortlessly work flows through it. By ditching the drawer pile and installing a systematic wrench organizer rack, you eliminate wasted search time, protect your investments, and build a streamlined system that makes every project smoother.
How do you currently store and organize your hand tools? Are you team magnetic tray, pegboard, or organized drawer rack? Drop your setup details or questions in the comments below—I would love to hear how you keep your shop organized!
